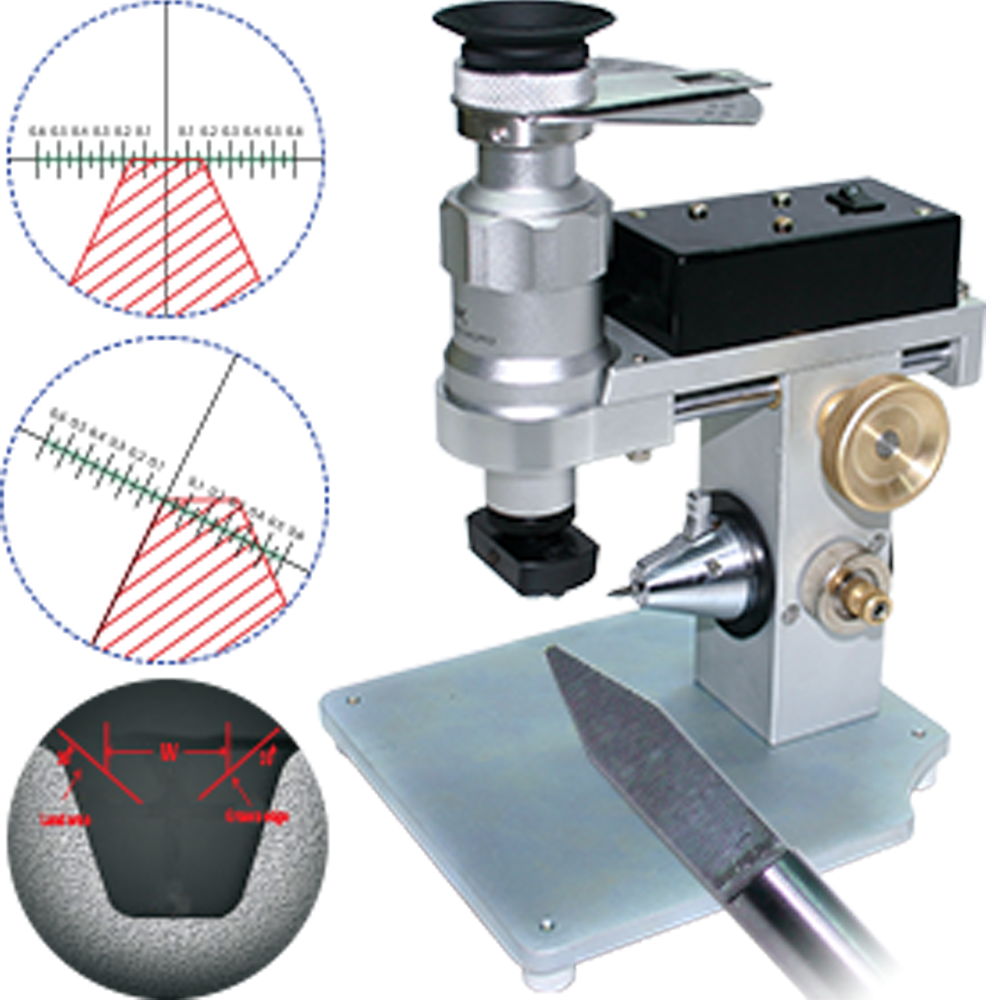

A groove cutter checker designed around a small industrial grade microscope fitted with good optics capable of magnifying the cutter 20 times over. The blade is mounted in the spring loaded chuck which positions the blade flat in relation to the viewing angle so that it can be measured accurately using the LED back lit high precision reticule with a precision of 0.01 mm. This easy to use precision microscope is a good alternative to the more expensive and cumbersome Shadow-graphs.

The GolfMechanix R&A/USGA Conforming Groove Profile Cutter Checker is designed for checking the width and angle of cutters used specifically for engraving grooves on clubheads.

This easy to use precision microscope is an inexpensive alternative to the more expensive, cumbersome and difficult to use Shadowgraphs.

This compact desktop device features a special chuck/blade holder that positions the blade flat in relation to the viewing angle, so it can be measured accurately on a high-resolution reticle with a precision of 0.01 mm and a magnification of 20x.

A blur-removing sharp focus LED light, helps enhance edge contrast for added precision.

This product is dropshipped. For a shipping quote please get in touch with us via Live Chat or the link below.
