Guarantee

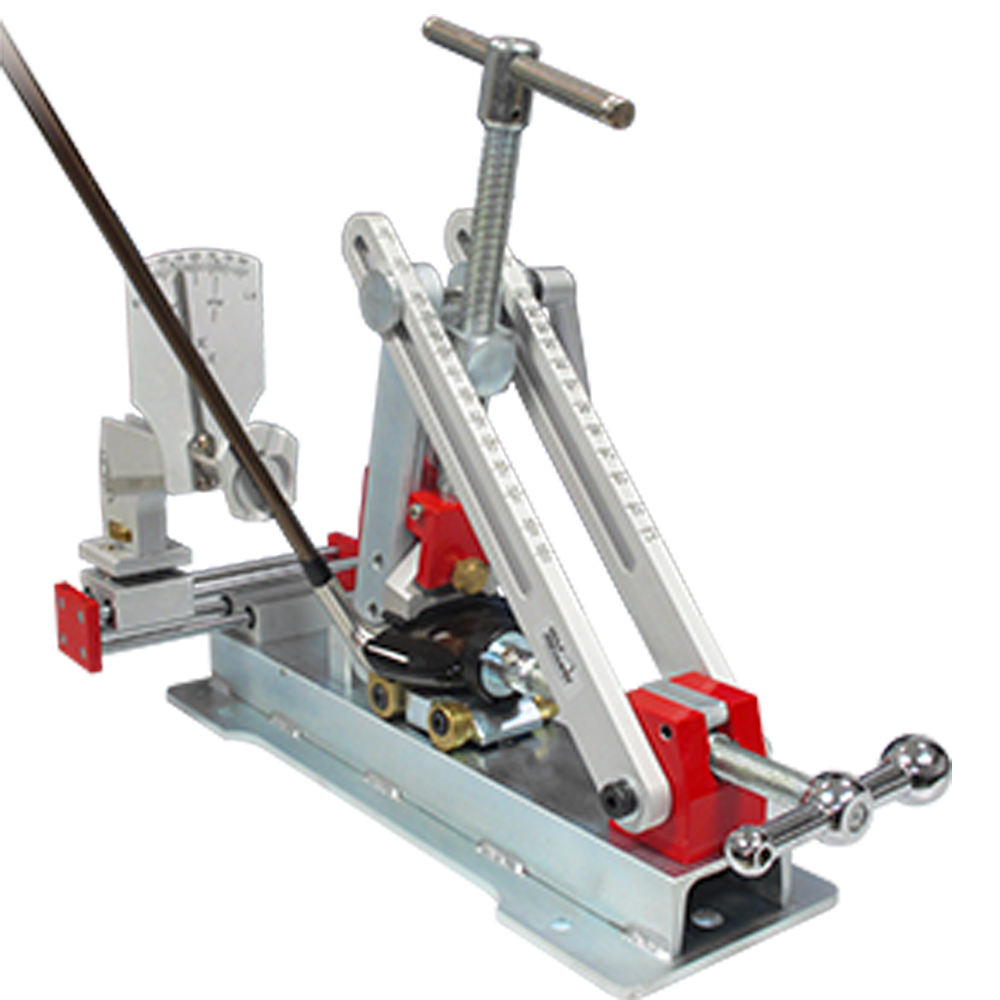

Universal Bending Gauge
The Universal Clubhead Bending Gauge is engineered like no other gauge we ever made! This gauge bends woods, irons, hybrids and putters in one easy setup. Currently used by major OEMs and custom fitting centers world-wide, the machine has proven its reliability and performance in the hands of experienced clubmakers.
This product is dropshipped. For a shipping quote please get in touch with us via Live Chat or the link below.
Description
A universal lie and loft bending gauge that does woods, irons, hybrids and putters with brilliance!
Based on the original metal wood bending gauge we introduced to the industry when Drivers and Fairways forged from CP4-Ti were popular.
The new design is built on the 24/36 variable geometry frame of our highly evolved 1509xx series. This arrangement sits the clamped club with the hosel upright, making the club easier to work with and improves bending accuracy.
We also paid particular attention to the means and methods of clamping a thin shelled driver without crushing them when subjecting them to high bending and clamping stress. Our solution led us to develop a new 2 piece set clamp that uses moulding putty to conform to any driver shape. The bottom clamp supports the vulnerable clubhead sole and prevents it from being scratched and damaged while the rear clamp secures the clubhead in place during bending.
The use of custom moulds to bend drivers is common practice with OEM?s and casting houses, and the best method we know of that?s well suited for this job.
Irons and hybrids also benefited from the same attention resulting in an improved adaptive kinematic clamping system that does not damage the finish found on most clubheads.
Key Features:
- Specifically designed for handling a wide range of club-head.
- Dual clamping arrangement for woods, irons and hybrids.
- Interchangeable soling pads, face pads and clamps.
- Re-usable dam set for producing unlimited number of moulds.
- 24/38 club head setup offers all the advantages and none of the drawbacks of a fixed setup system (hybrids & woods).
- Lie& Loft protractor mounted on a double stage short stroke linear bearing assembly.
- Adjustable height protractor takes care of long hosels.
- Positive engagement of shaft when measuring.
- Protractor has reading accuracy of 0. 5 degree or better.
- Bolts onto all the golf mechanix stands and swivel heads.
