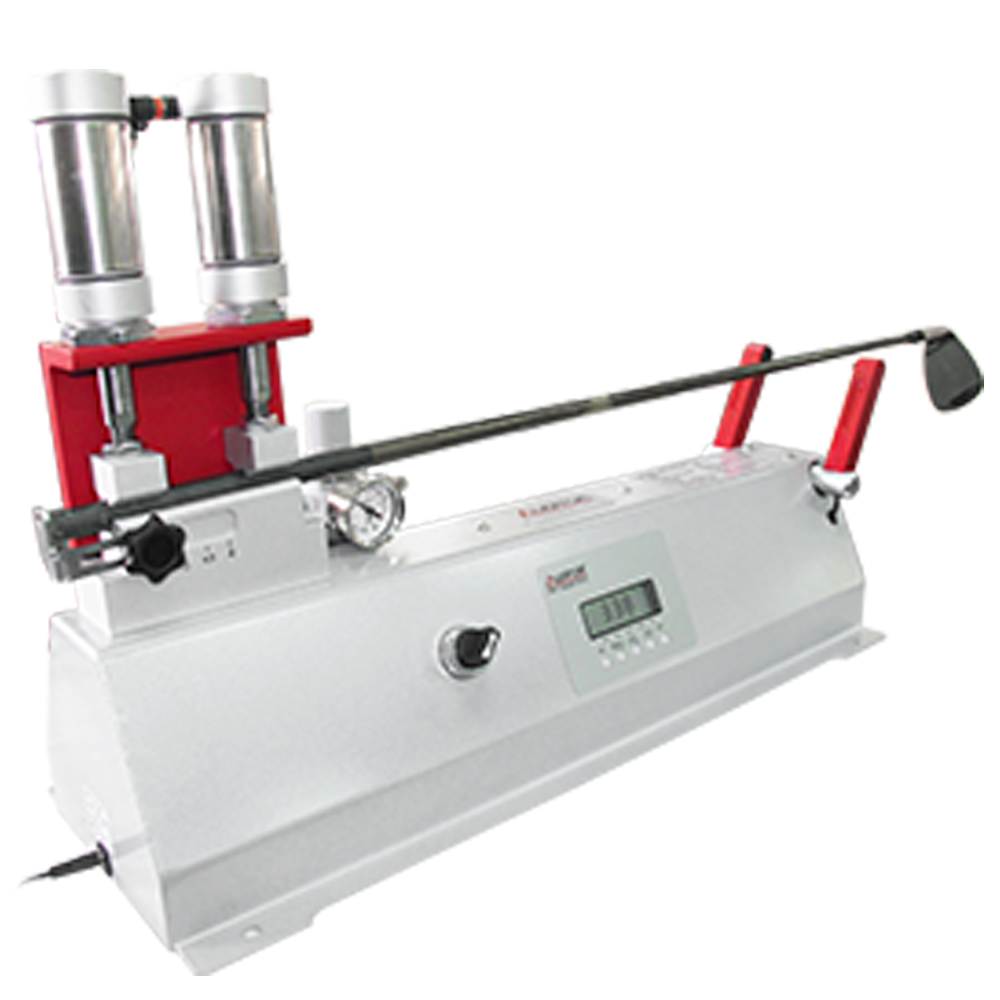

Heavy Duty Optometrix Frequency Analyzer
The Auditor Optometrix Frequency Analyser is a valuable production tool for shaft makers, high volume shaft resellers and golf club assemblers. It offers ease of use, a high level of precision, reliability and speed that other frequency analysers have yet to achieve.
The clamping pressure is fully adjustable and pressure is equalized between the one way flow pneumatic actuators to reduce the water pike effect which can foul measurements.
The laser sensing optic is built onto a tilting pod to facilitate alignment to the shaft centreline.
CPM readings can be displayed in both integer and decimal mode to 1/10th of a CPM for unmatched precision.
Key Features:
- Measures shafts, gripped and grip-less clubs
- Measures shaft frequency up to 600 cpm in 0.1 cpm
- Averages last 5 readings with overflow protection
- Adjustable shaft clamp length from 4 to 5 inches
- Adjustable shaft clamp pressure.
- Compatible with the old Precision FM standard.
- Balanced self damping pneumatic cylinders.
- Air compressor minimum requirement: 135 psi 10Kg.Cm2 at a constant 5.5 CFM (155 l.pm)
The Auditor Heavy Duty Optometrix Frequency Analyzer is an invaluable tool for high-volume clubmakers used to consistently measure shaft frequency of both assembled clubs and raw shafts. Other frequency machines measure by reflected light which often results in missed or inconsistent frequency readings. By using a laser as the primary light source, measurements are not affected by ambient or reflected light, shaft color or shaft material. A heavy duty base protects the electronic components of the analyzer.
